Characteristics: The machine reduce the chance of damage of steel rope by double capstan design; fast but stable pulling and hoisting at rather even speed; need only one person to pull the rope and wind it on reel at ease; belt-pulley power transmission driven by engine; reliable brake system; applied in pulling, stringing, winding, lifting, sagging and erection of transmission tower; 50kN capacity; light weight and detachable option (into 3 parts) available upon request.
SPECIFICATIONS:

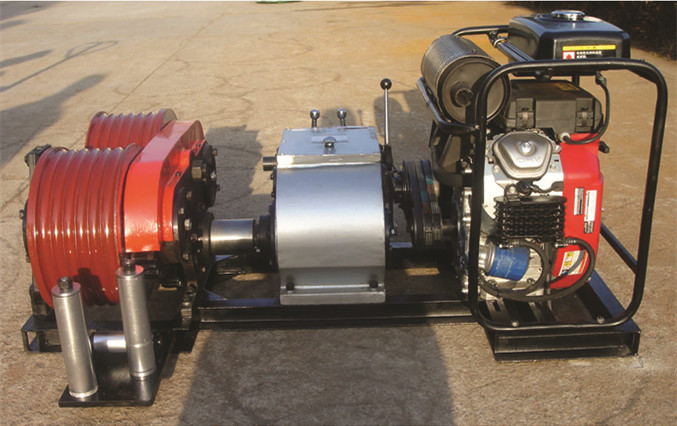

| DOUBLE CAPSTAN ENGINE WINCH (belt-pulley power transmission type) |
| MODEL |
JJQS-50 |
| SPEED STEPS |
III |
II |
I |
| RATED PULLING (KN) |
10 |
25 |
50 |
| PULLING SPEED (m/min) |
30/ 28 |
16/ 15 |
6 / 5.5 |
| ENGINE |
HONDA GX390 13PS/3600ipm |
| CAPSTAN |
7 Nos. of Grooves of 204mm bottom diameter |
| MAS (kg) |
280 |
