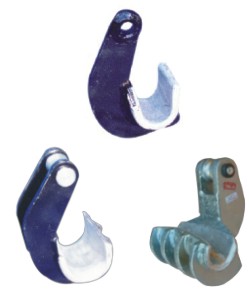

Conductor Lifting Tools for stringing bundled conductors
Conductor Lifting Tools for stringing bundled conductors Conductor Lifting Tools for stringing bundled conductors Conductor Lifting Tools for stringing bundled conductors Conductor Lifting Tools for stringing bundled conductors

Conductor Lifting Tools for stringing bundled conductors

Item No.: 19101
The lifting tools are used for lifting bundle conductors on overhead transmission line. We can produce conductor lifers for two bundled conductors, three bundled conductors, and four bundled conductors.
INQUIRY
Description

Conductor Lifting Plate Hooks
Item No. Model Work load (KN) Lining Length (mm) Lining Width (mm) Weight (kg)
19101 ST8 8 60 36 1
19102 ST12 12 120 48 2.5
19103 ST25 25 200 40 7
19104 ST40 40 260 50 10.5
19105 ST60 60 265 60 12
Application: Lifting hooks are used for lifting conductors on transmission line. Customer can use it to assemble different conductor lifter according to their requirement.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.


Lifting Tools for 2 Bundled Conductors
Item No. Model Work load (KN) Lining Length (mm) Weight (kg)
19112 ST25R 2 x 12 120 13
19113 ST50R 2 x 25 200 26
19114 ST80R 2 x 40 260 40
Application: Conductor Lifting Tools are used for lifting 2 bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.

Lifting Tools for 3 Bundled Conductors
Item No. Model Work load (KN) Lining Length (mm) Weight (kg)
19108 ST36T 3 x 12 48 21
19109 ST75T 2 x 25 40 39
19110 ST120T 3 x 40 50 64
Application: Conductor Lifting Tools are used for lifting 2 bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.


Lifting Tools for 4 Bundled Conductors
Item No. Model Work load (KN) Lining Length (mm) Weight (kg)
19115 ST50S 4 x 12 120 35
19116 ST100S 4 x 25 200 67
19117 ST160S 4 x 40 260 97
Application: Conductor Lifting Tools are used for lifting four bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.
